FREE SHIPPING! (USA only)

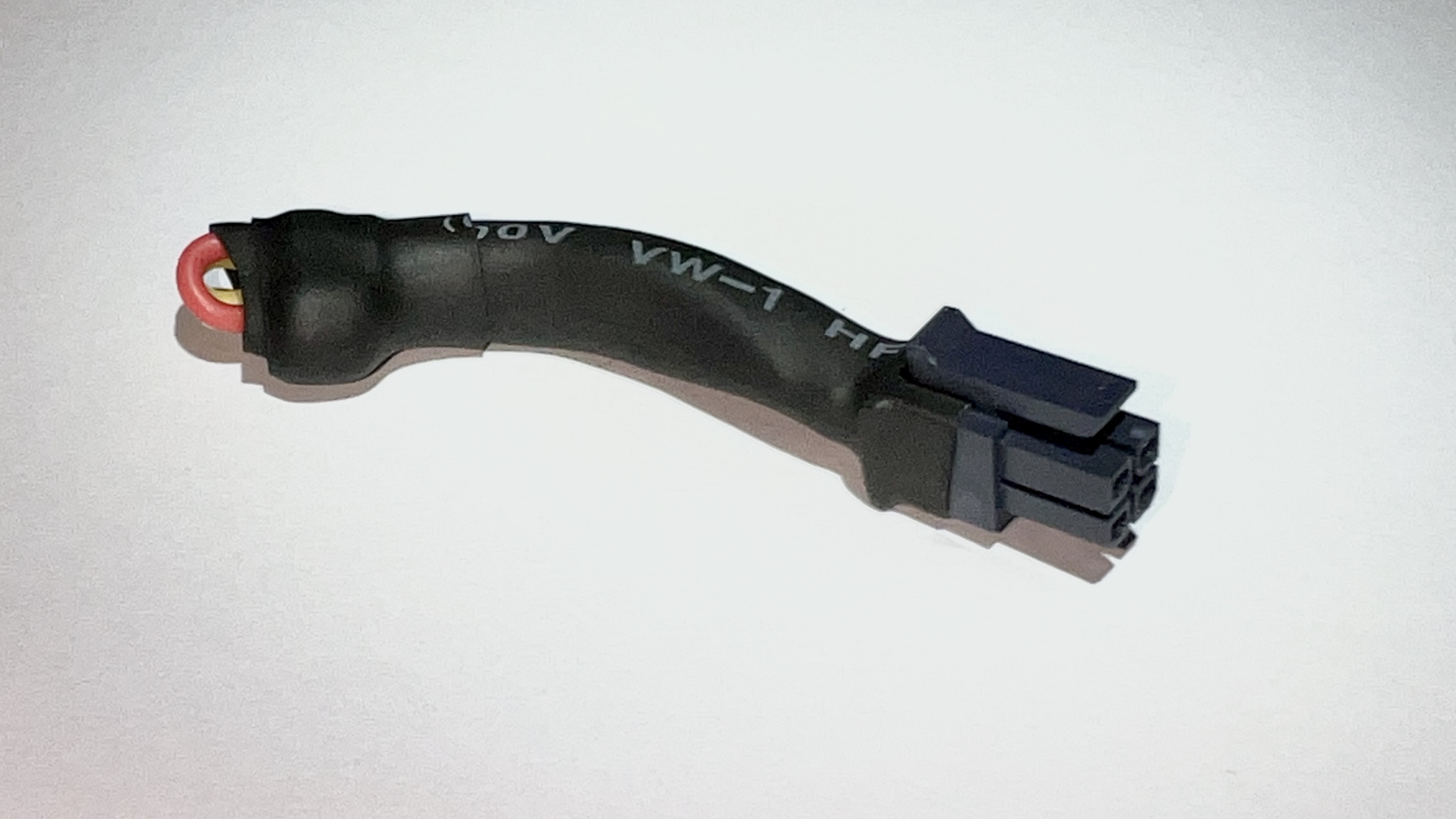

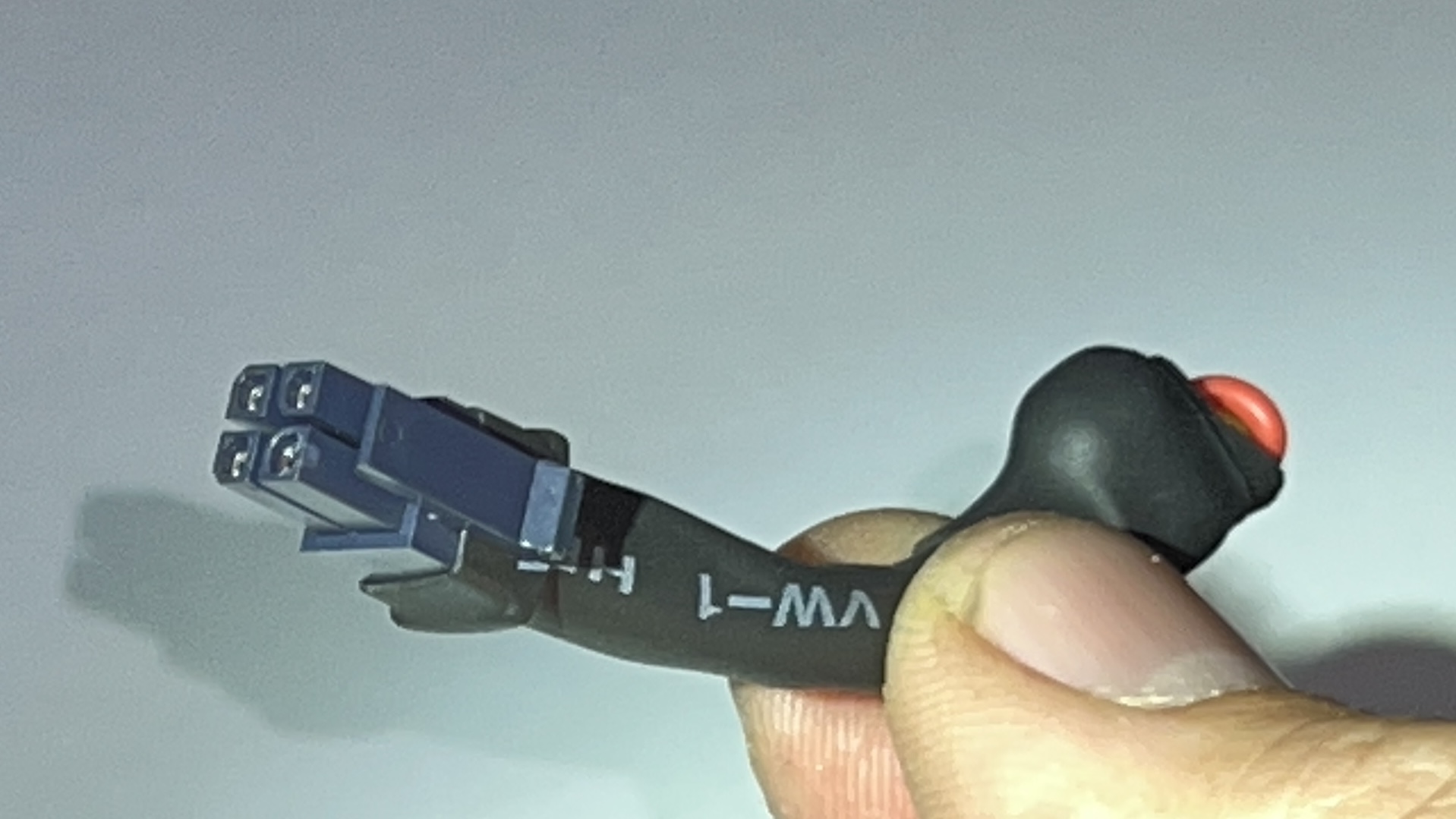

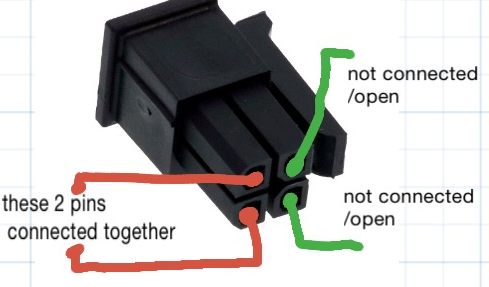

this cable is designed to bypass the speed inhibitor microswitches on the chair’s seat lift system for testing purposes. (ONLY works for seat lift – not for tilt, recline etc)
if your chair has an error on the screen indicating that your seat lift is raised, WHEN IT’S NOT- this cable will help you diagnose the limit switches and associated cabling, by simply bypassing it all!
if the error goes away, then you know there is an issue with the limit switches, or the wiring connecting them to the seating controller.
COMPATIBILITY:
this test cable works on most all chairs with the “eye level seat lift system” running Q-Logic 3 and Q-Logic 2
Edge 2, Edge 3, Edge HD, Stretto, Edge 3, 4Front.. etc..
it is NOT compatible with older chairs running Q-Logic version 1
WARNING: after plugging in this cable – your chair’s speed will NOT be inhibited at all when the seat lift is raised any amount!
it can be dangerous to operate a chair at full speed with the seat lift raised! please take care when preforming testing with this cable.
FYI – most chair manufacturers state that connecting ANYTHING to the chair that is not sold by them directly, can result in voided warranties.
each cable will look slightly different, as they are assembled by hand – but they all function exactly the same :^)
installation video – – – click here for install video
